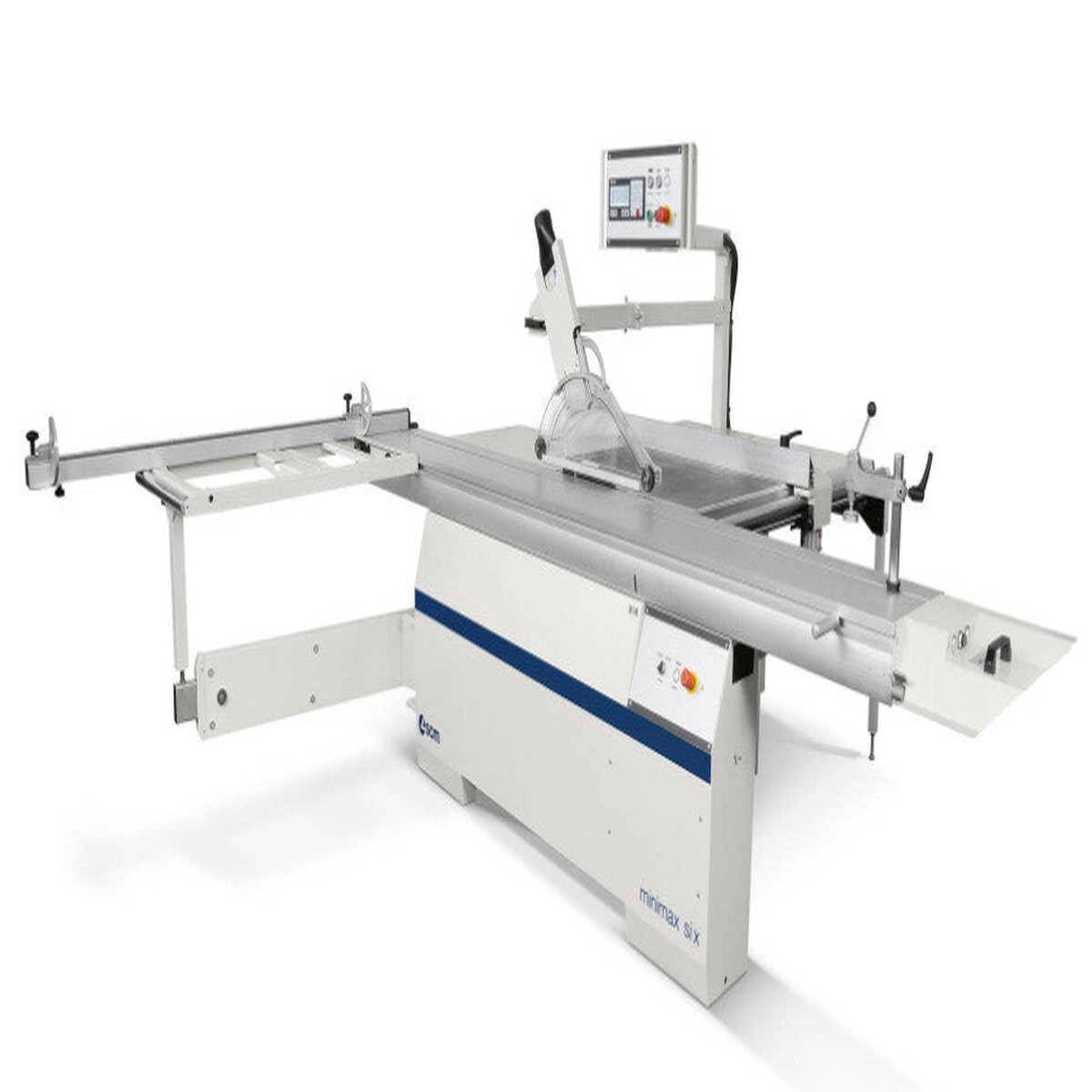

minimax si x Circular Saw w/ Tilting Blade (600v 3-Phase)

Blades tilting: -46o to +46o

Max. saw blade diameter with scoring blade installed: 400 mm

Max. saw blade projection from table at 90o/45o: 136/97/60 mm

Scoring blade diameter: 160 mm

Max. squaring stroke: 3200 mm

Cutting width on parallel fence: 1270 mm

Scorer motor: 0.9 kW (1.2 hp) 60 Hz

Exhaust outlets diameter: 120 – 80 mm

Standard Equipment

• Squaring frame (dimensions 1200 x 650 mm) with:
• telescopic fence with 2 flip-over stops and metric rule tilted towards the operator
• eccentric clamp
• swinging arm support
• idle roller to facilitate the panel loading/unloading
• Dedicated saw parallel fence with:
• “high rigidity” cast iron fence support
• micrometric adjustment and cam-locking system
• rectified steel round sliding bar, 45 mm diameter

“Ready 3 UP” Version electronic control, 3 axes control

• Control of blades unit lifting/tilting
• Tools data setting with automatic height adjustment with respect to the tilting
• Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
• Additional functions: calculator and hour counter
• Powered parallel fence with electronic programmer
• position readout on encoder
• adjustment by means of recirculating ball screws
• continuously adjustments by means of pushbuttons or automatic positioning
• possibility of incremental positioning
• possibility of fence exclusion

Additional Features

• Angular cutting device with flip-over stops, equipped with:
• telescopic fence with two flip-over stops
• pre-set for angle rapid selection
• Squaring fence with no. 2 LCD readouts for stops position
• Third squaring stop with LCD display for the position readout
• Additional table on the sliding table
• Crate
• Triple Wall box
• Delivery Ex Factory
